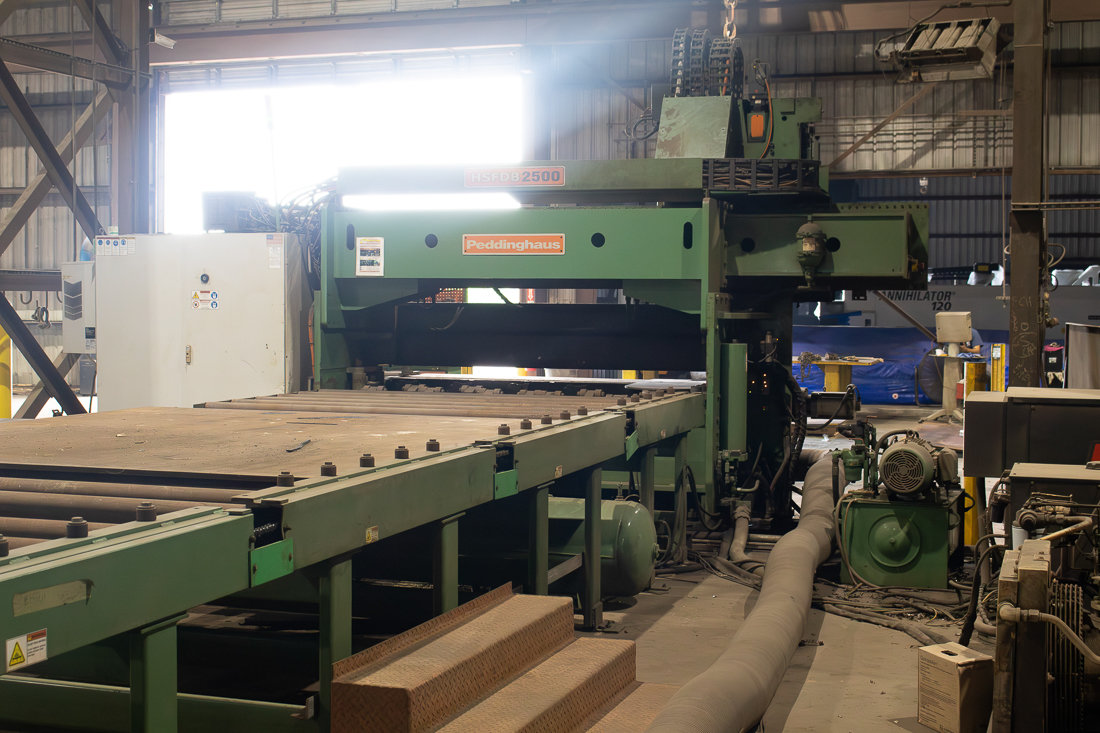

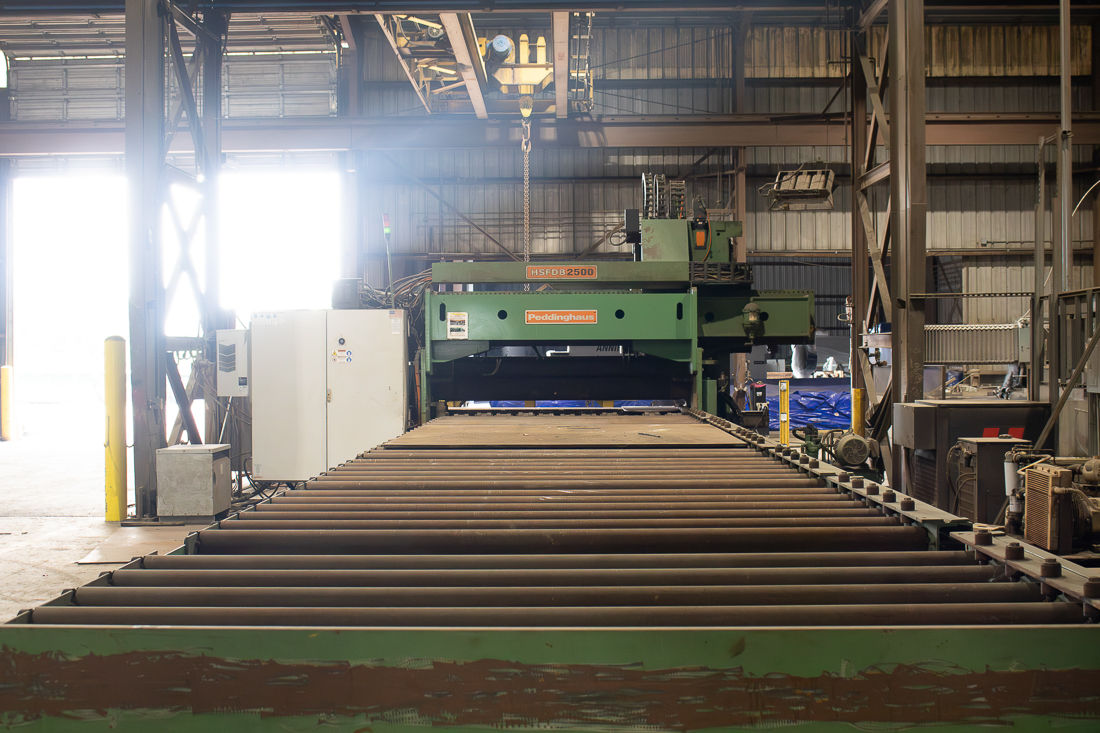

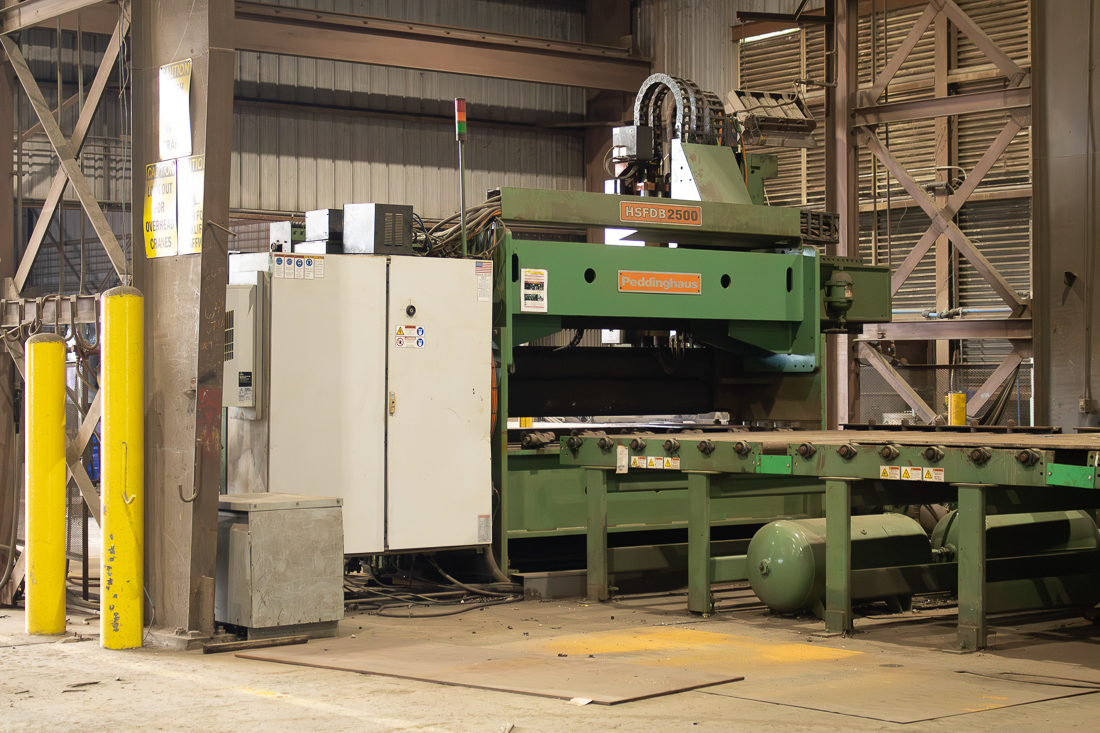

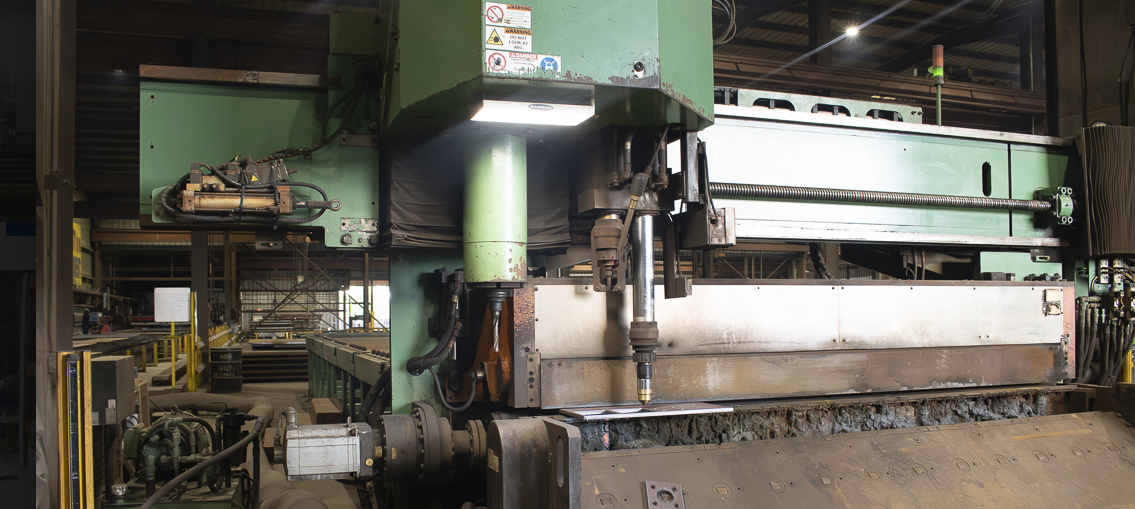

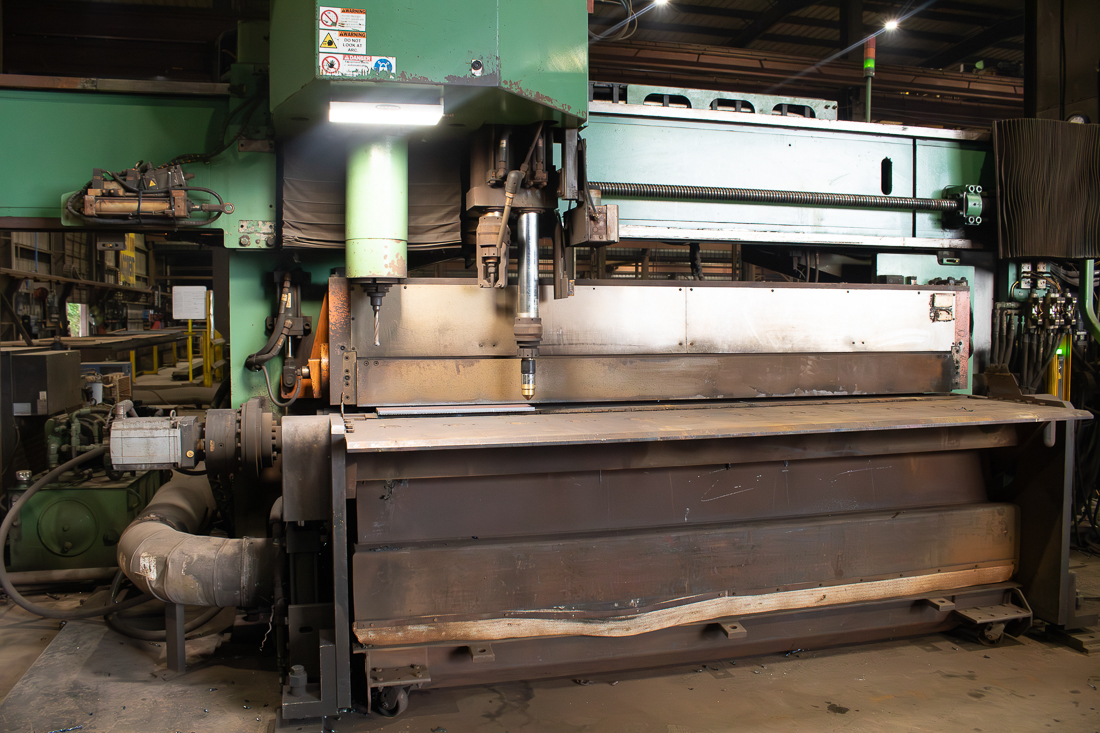

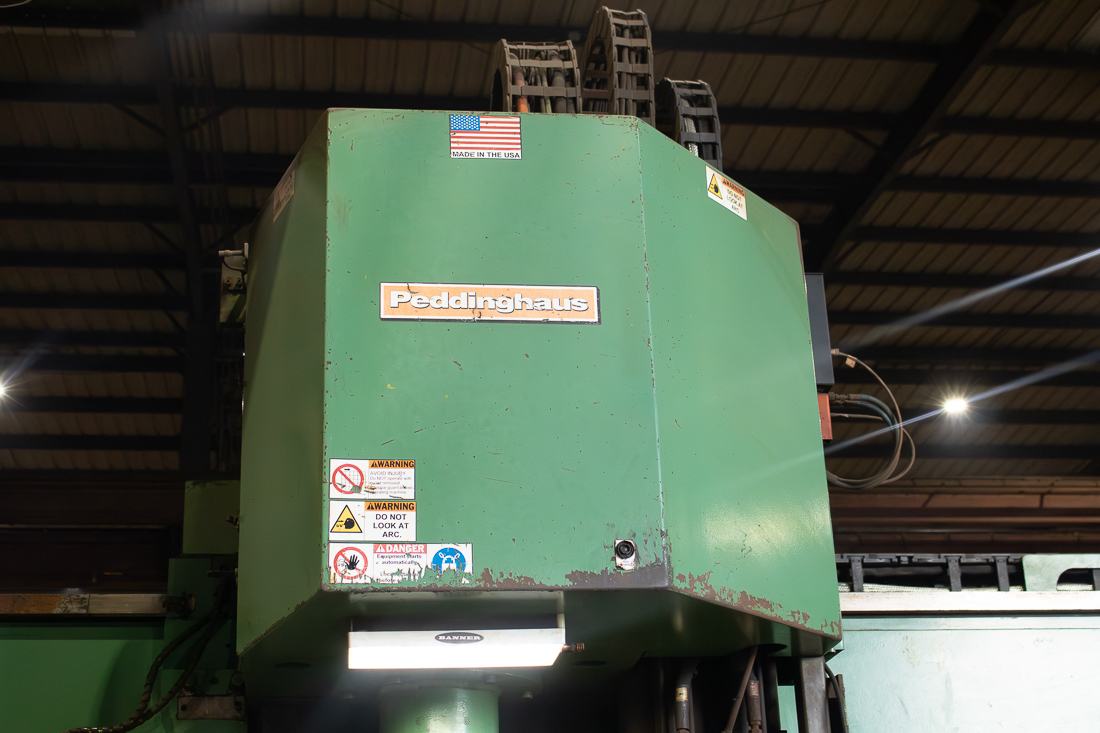

2014 Peddinghaus HS FDB-B 2500

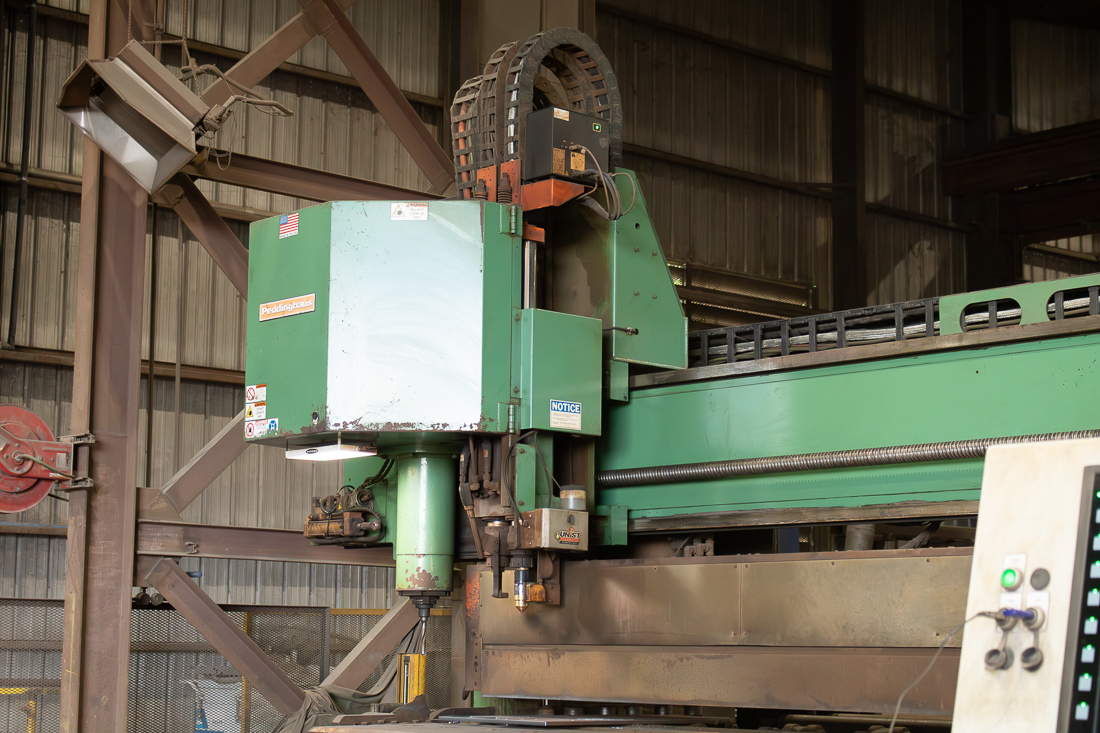

Siemens Spindle Motors – Powered by a 48 HP Siemens intelligent spindle motors, the HSFDB-B is outfitted with spindle speeds of up to 2250 RPM. The heightened technology allows for unmatched processing strength and output

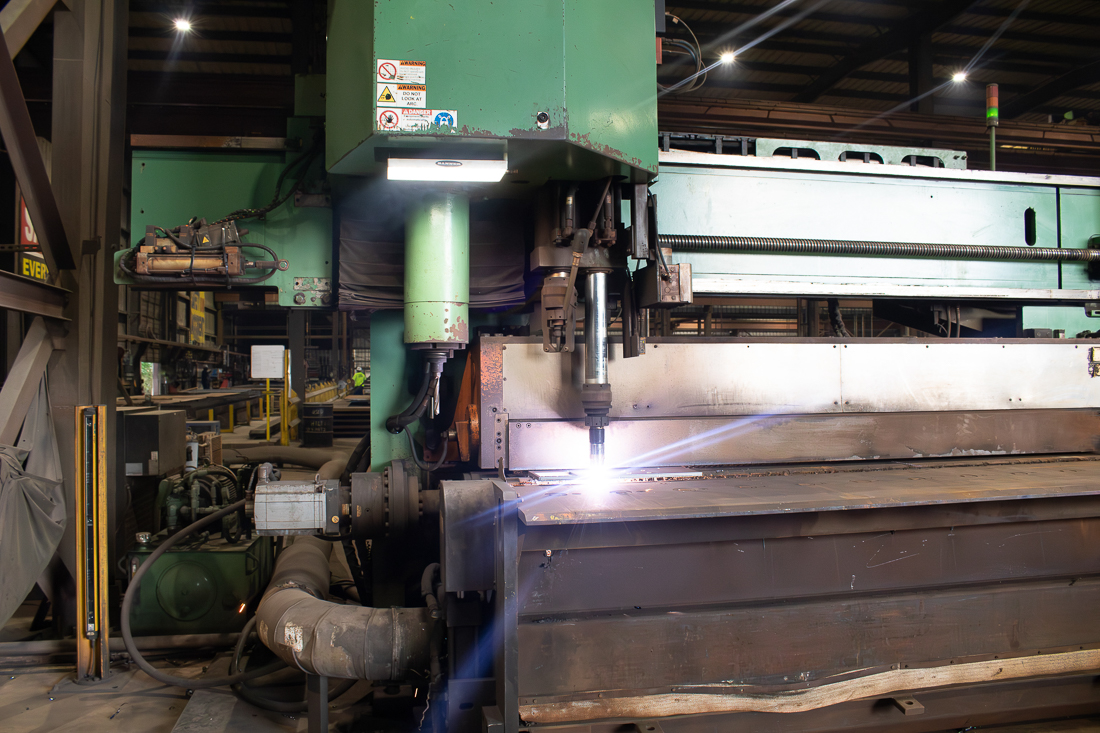

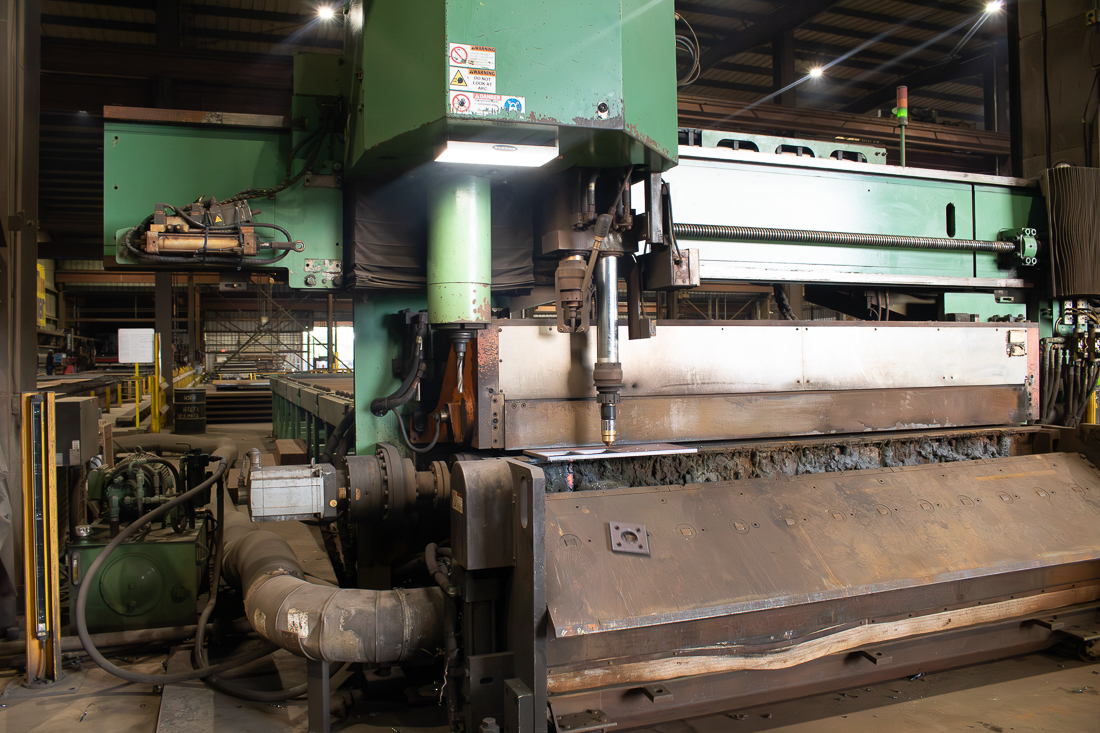

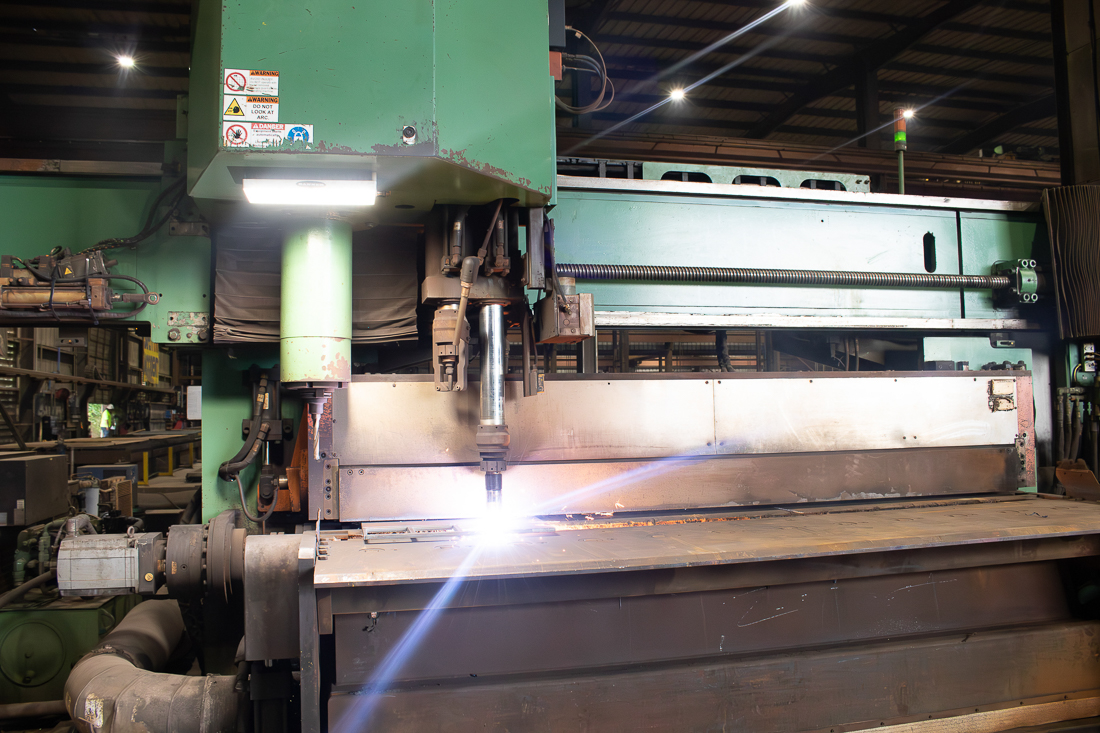

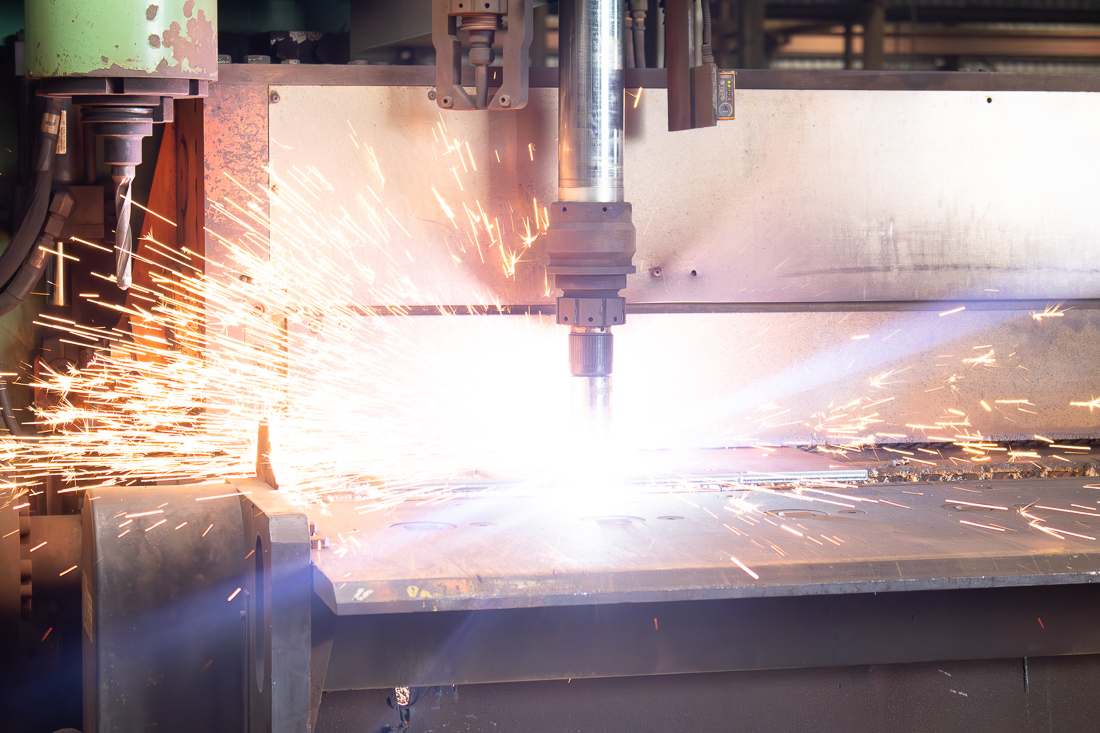

Both the Plasma and Oxy Cutting torches have the ability to cut up to 3″ thick plate. Whether its the speed of plasma, or the economy of oxy-fuel, thermal cutting is available in all forms on the HSFDB-B CNC plate processor.
SignoScript Carbide Scribing: The signoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and paint processes.

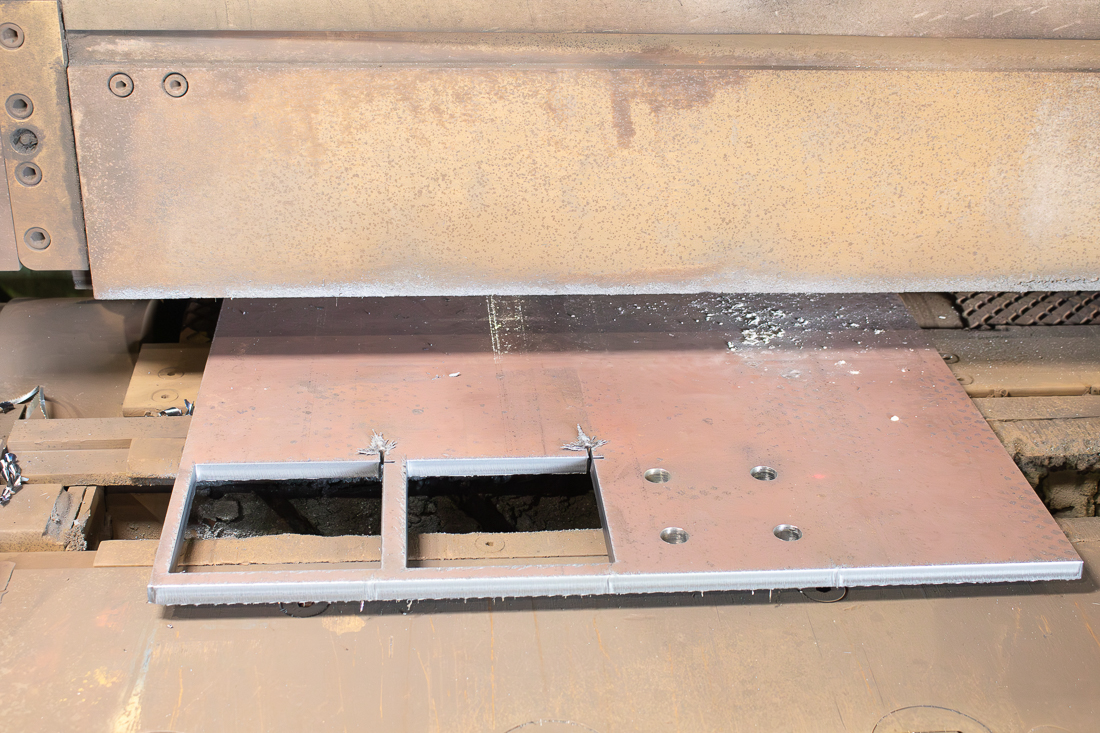

Cutting Efficiency: The HSFDB-B CNC plate processor has the capability to perform both edge start cutting and common line cutting techniques. Minimize scrap and consumable wear by getting the most out of your stock plate.

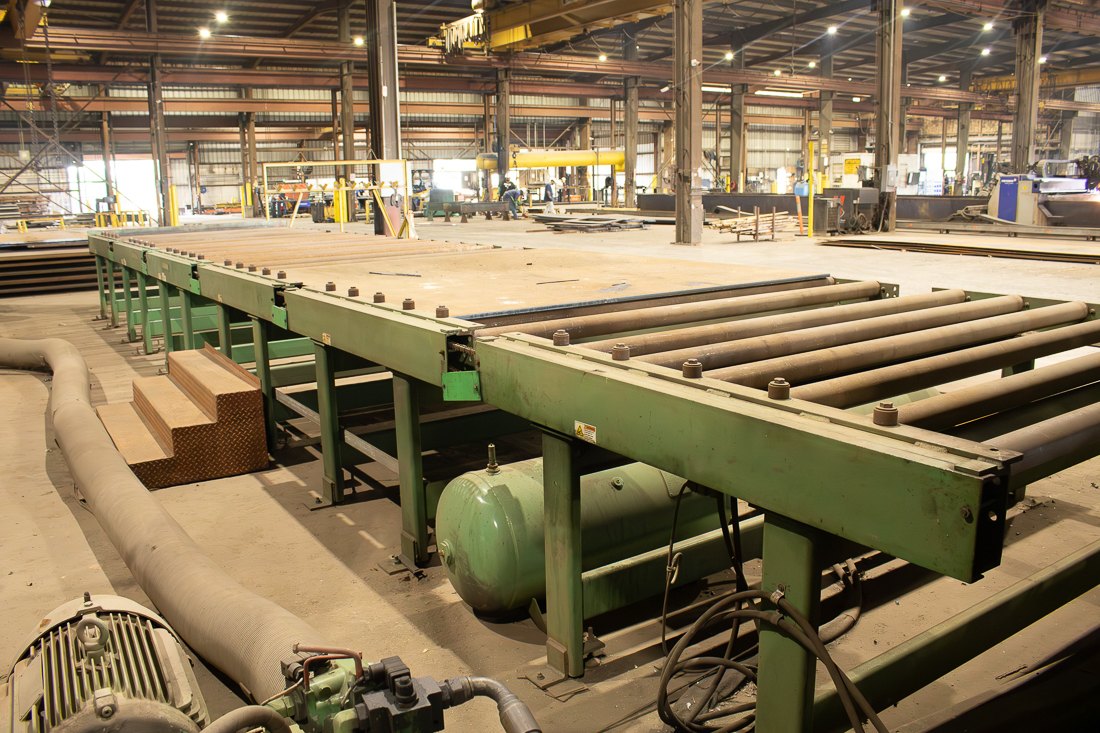

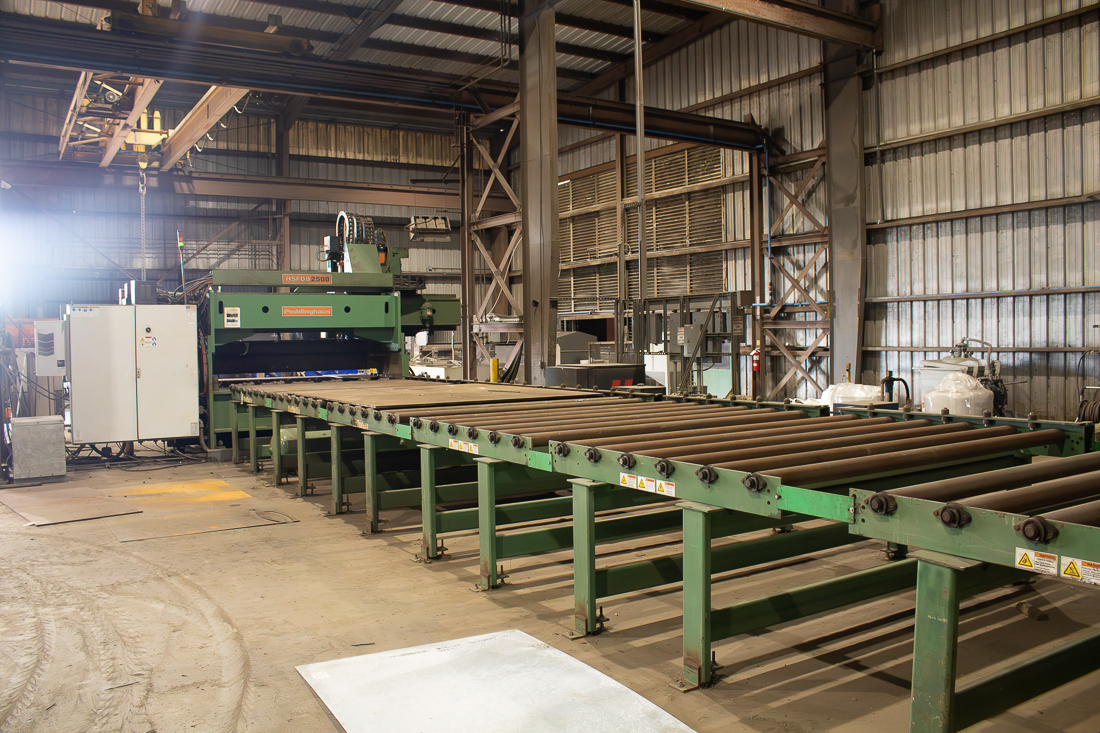

- 96″ x 480″ Cutting Envelope (8’x40′)
- Structural Steel Processor

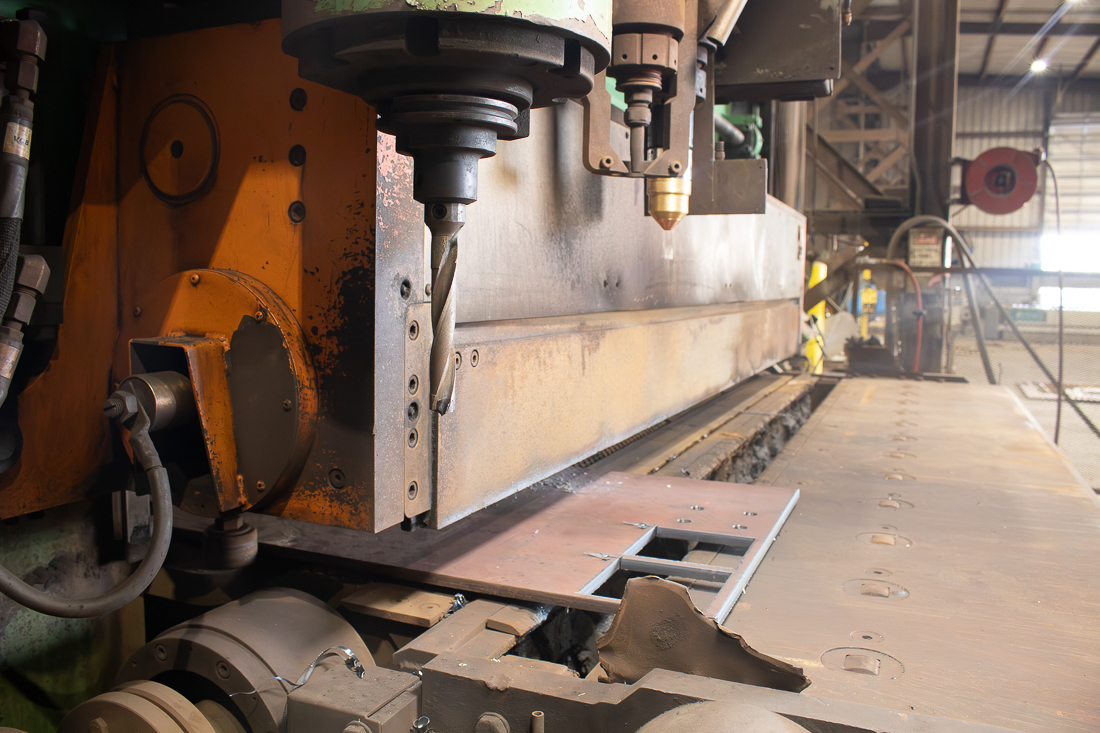

- High Speed Carbide Drilling

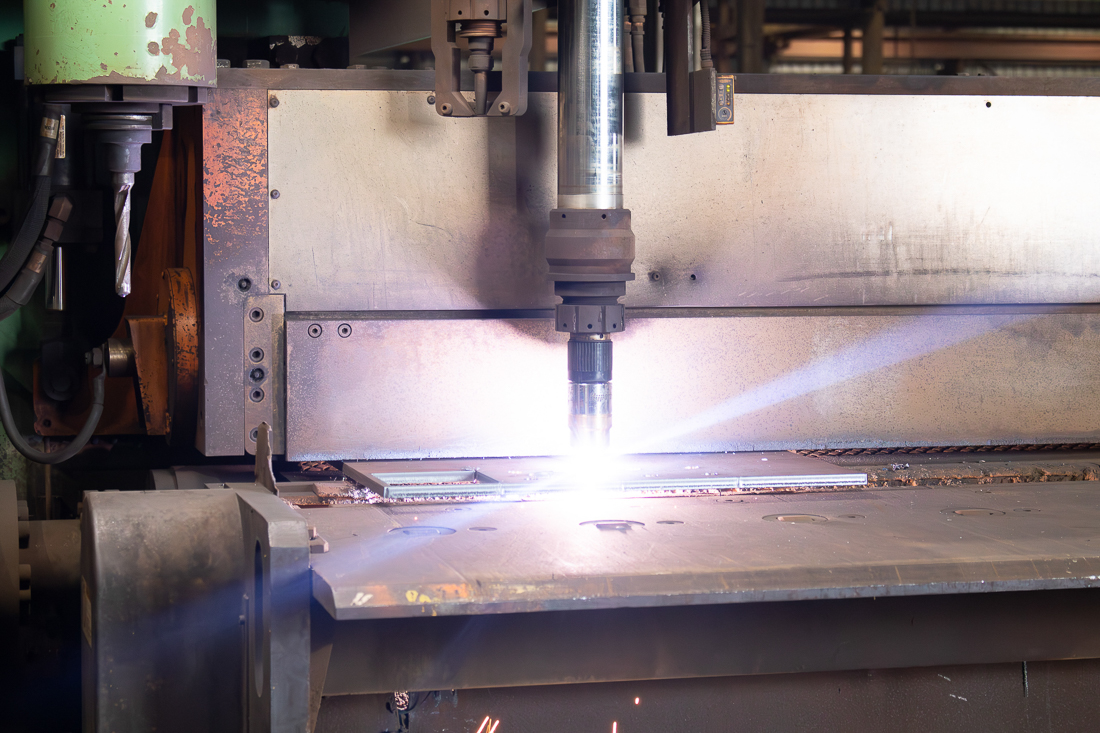

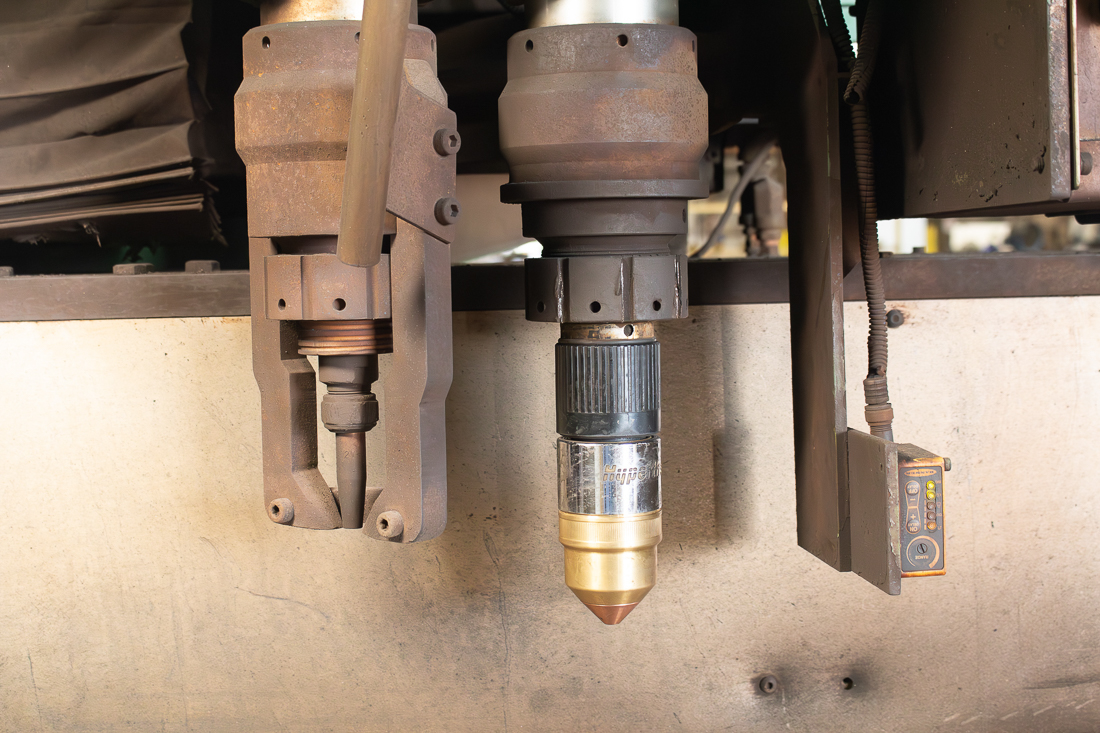

- Hypertherm HPR400XD Plasma Cutting

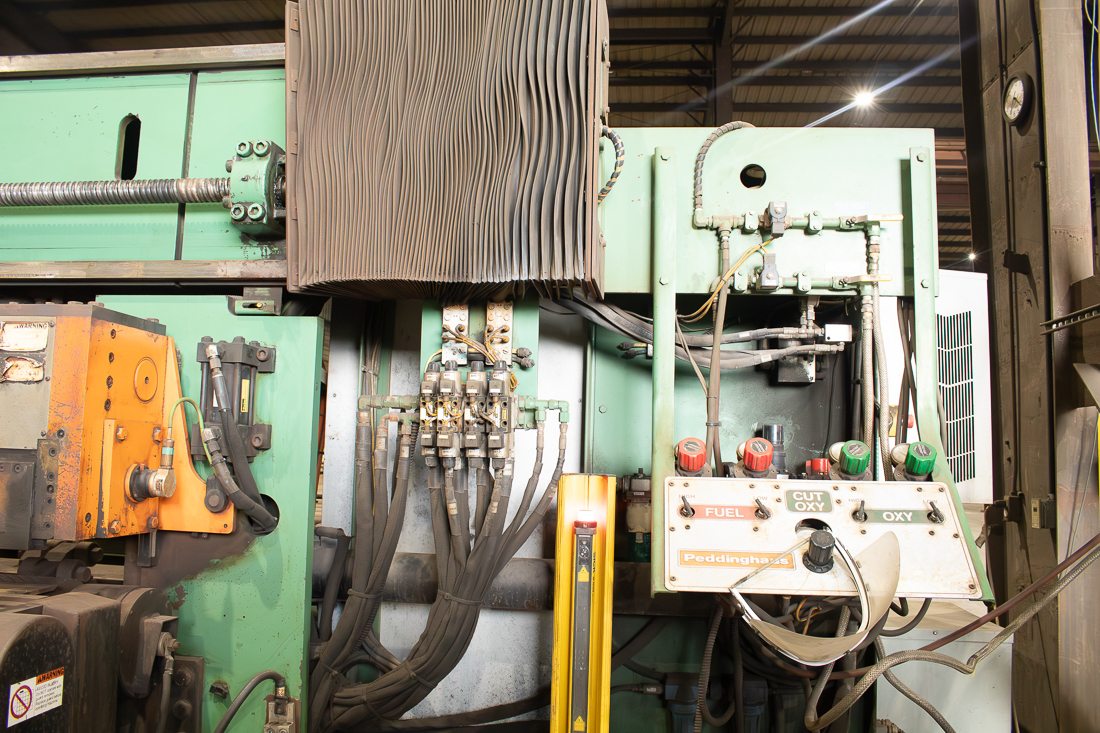

- Oxy-Fuel Cutting
- Milling

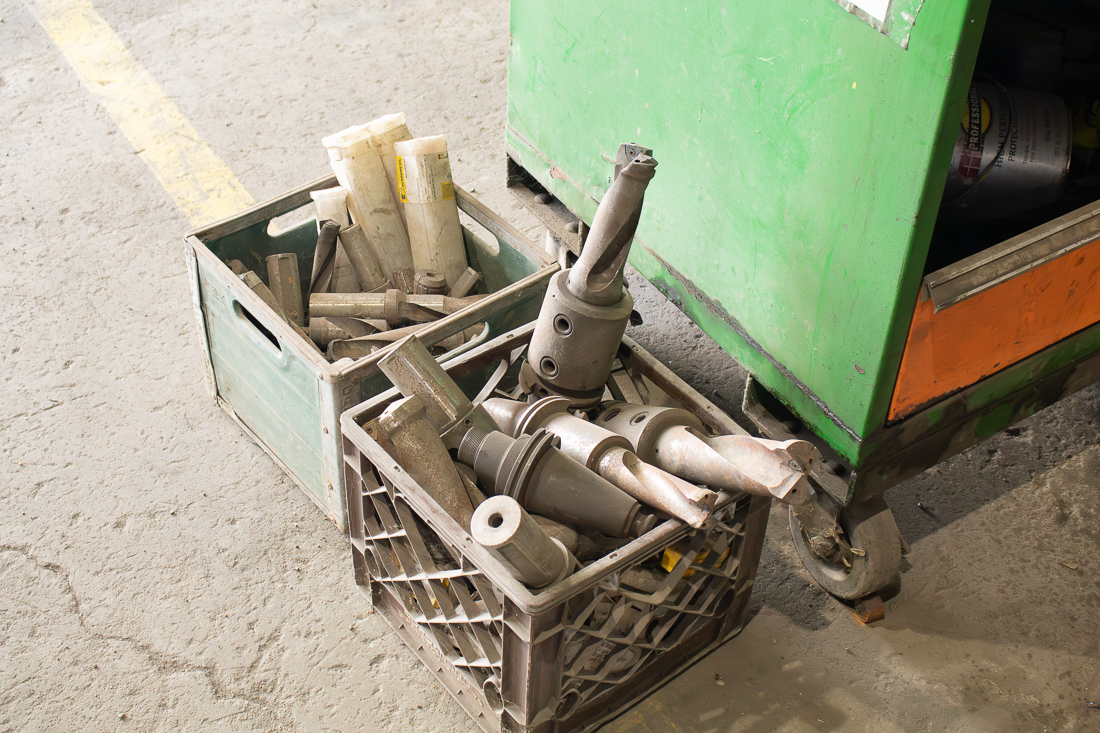

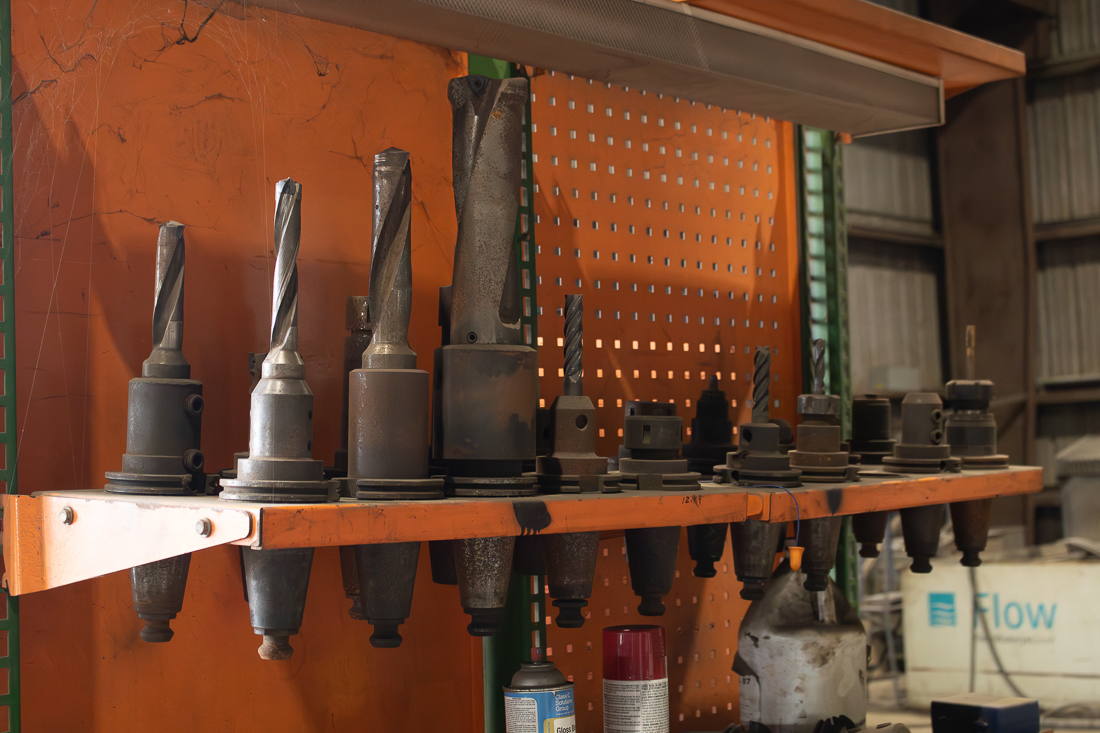

- 8-Station Tool Changer (removed), manually loading tooling
- Minimum Quantity Lubrication

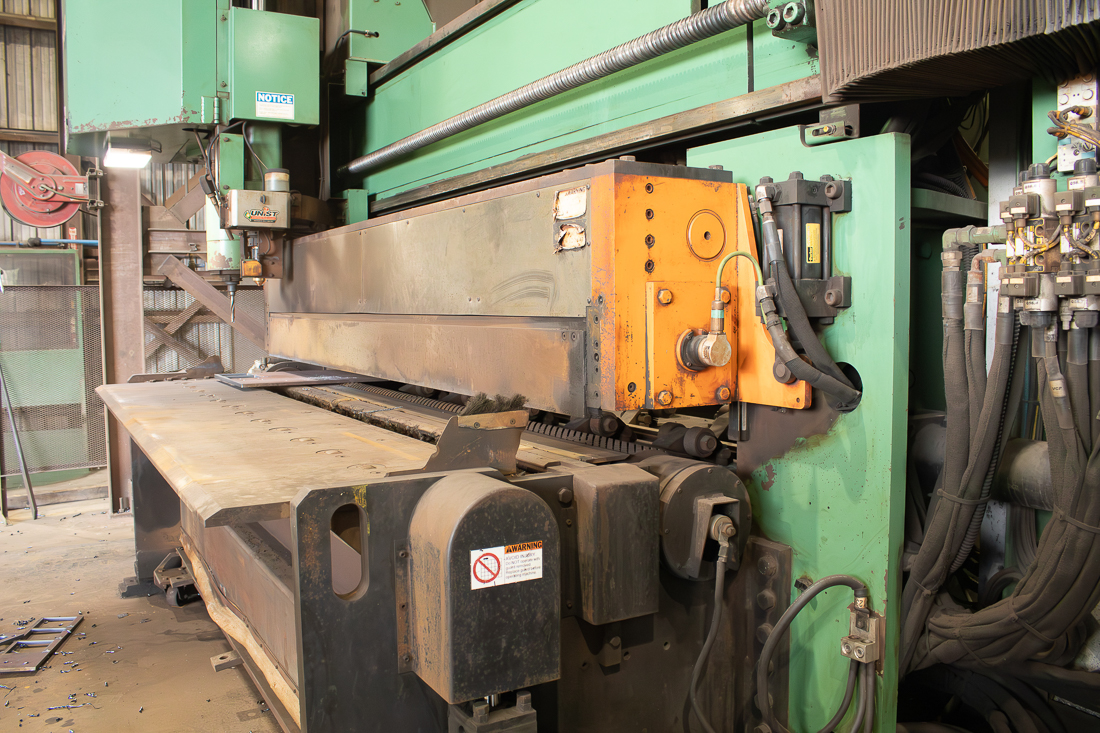

- Superior Clamping System

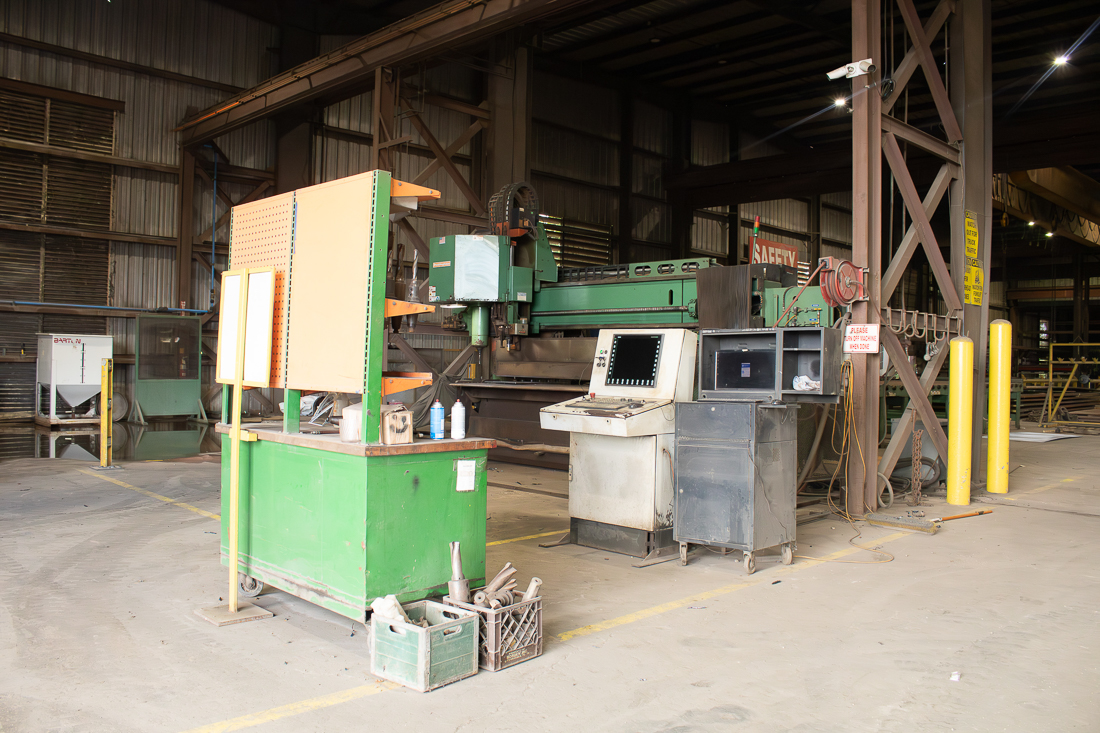

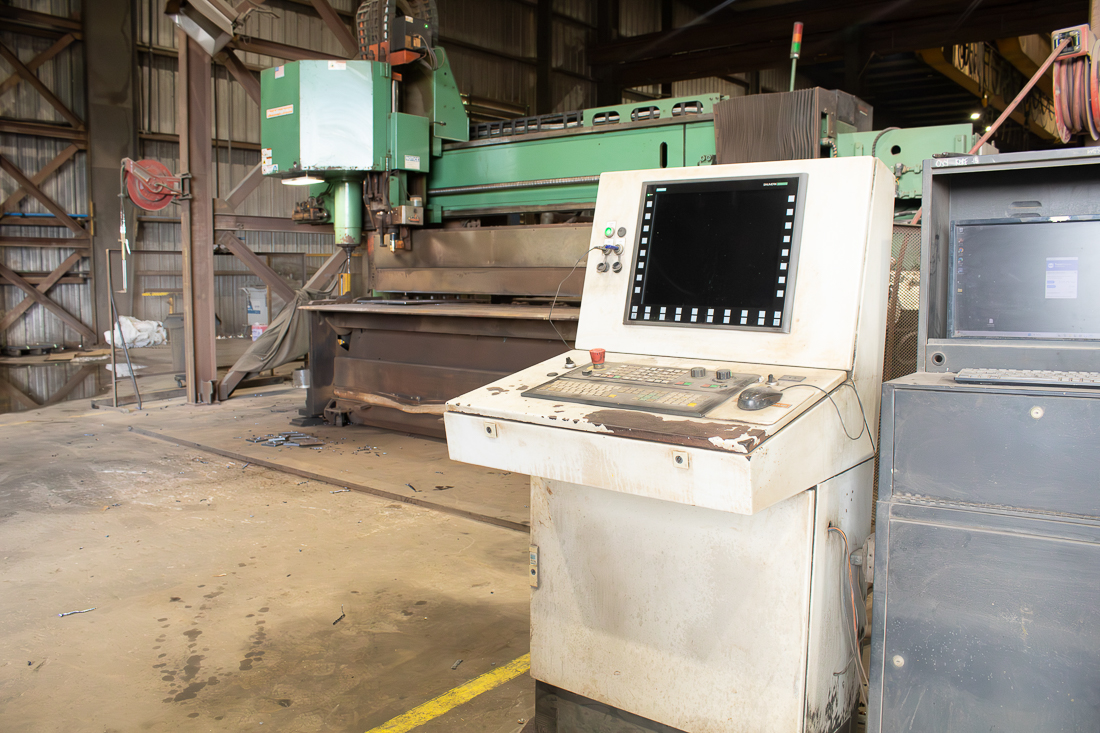

- Peddinghaus Control
- 3″ Thick Plate Cutting Capacity

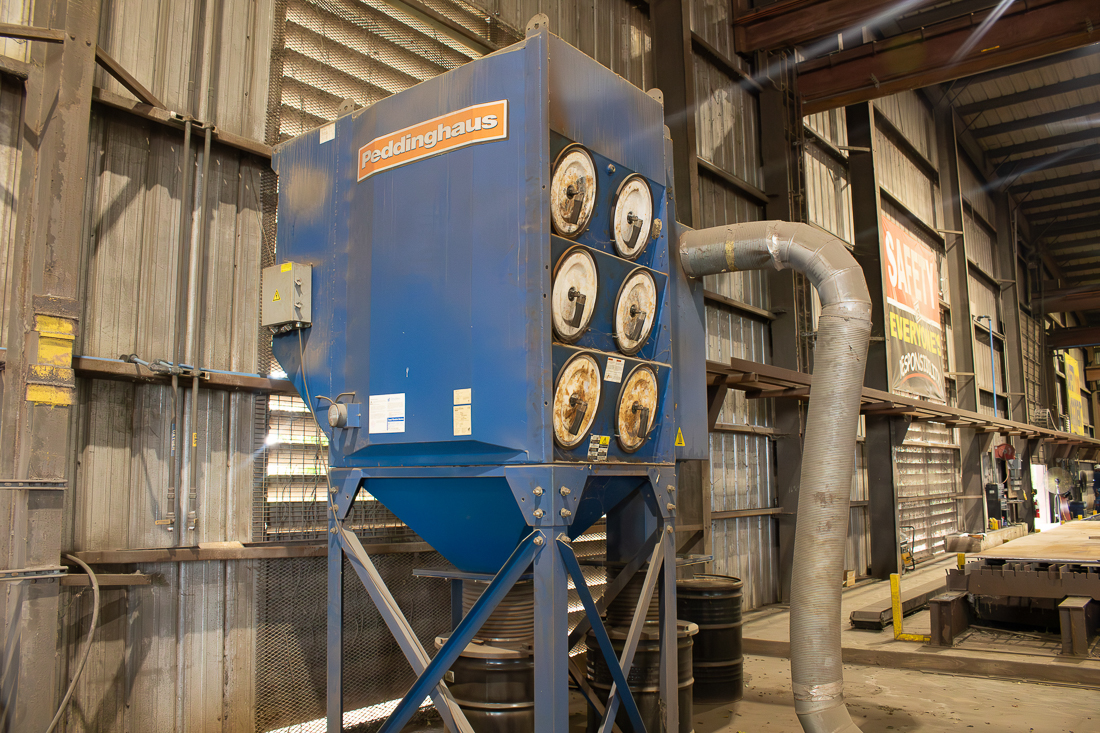

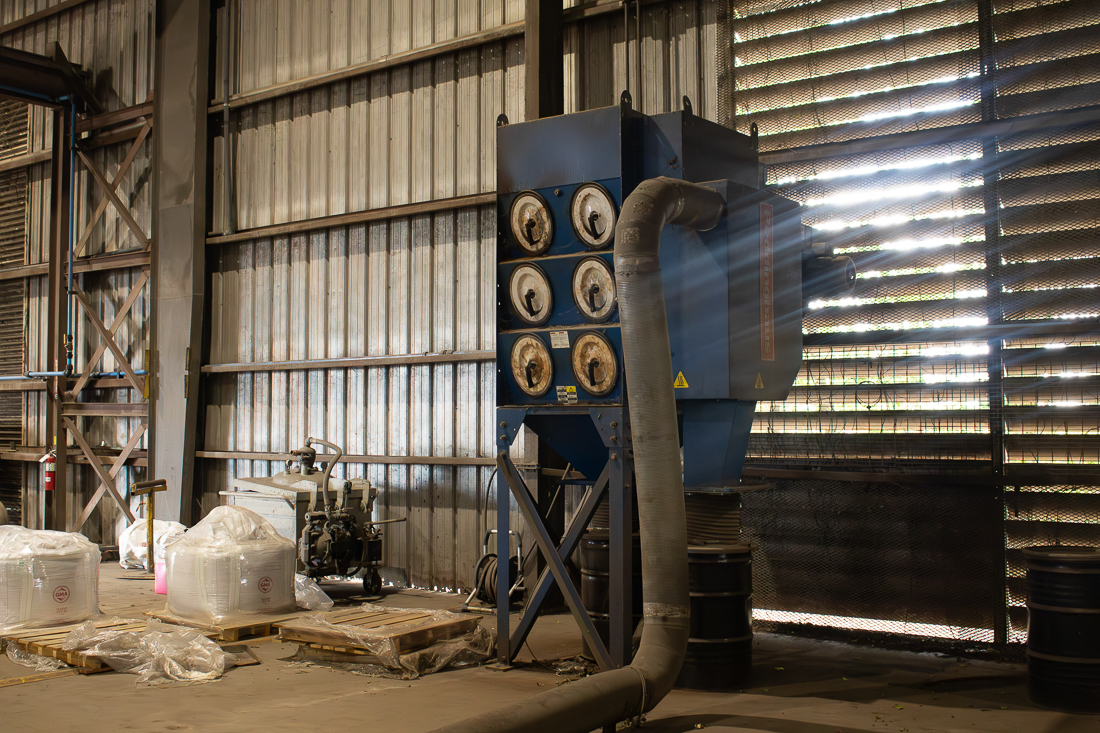

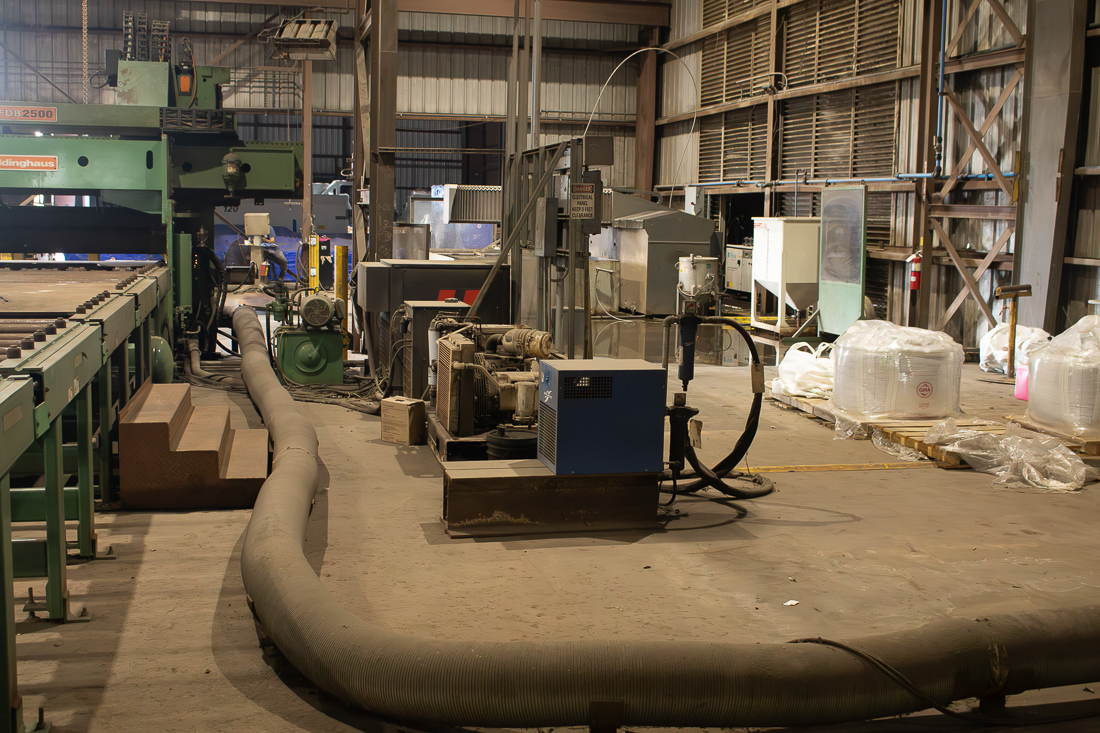

- Dust Collector included
- Automatic Tool Length Measurement
- Thru Tool Lubrication system
- Spindle Taper: CAT#50
- Machine Weight: 35,488 LBS
- Min-Max Plate Drilling Range: 0.25″-3”
- Min-Max Plasma Cutting Range: 0.25″-2.5″
- Spindle Speed: 0-2250 RPM
